Heavy-duty Horizontal CNC Lathes

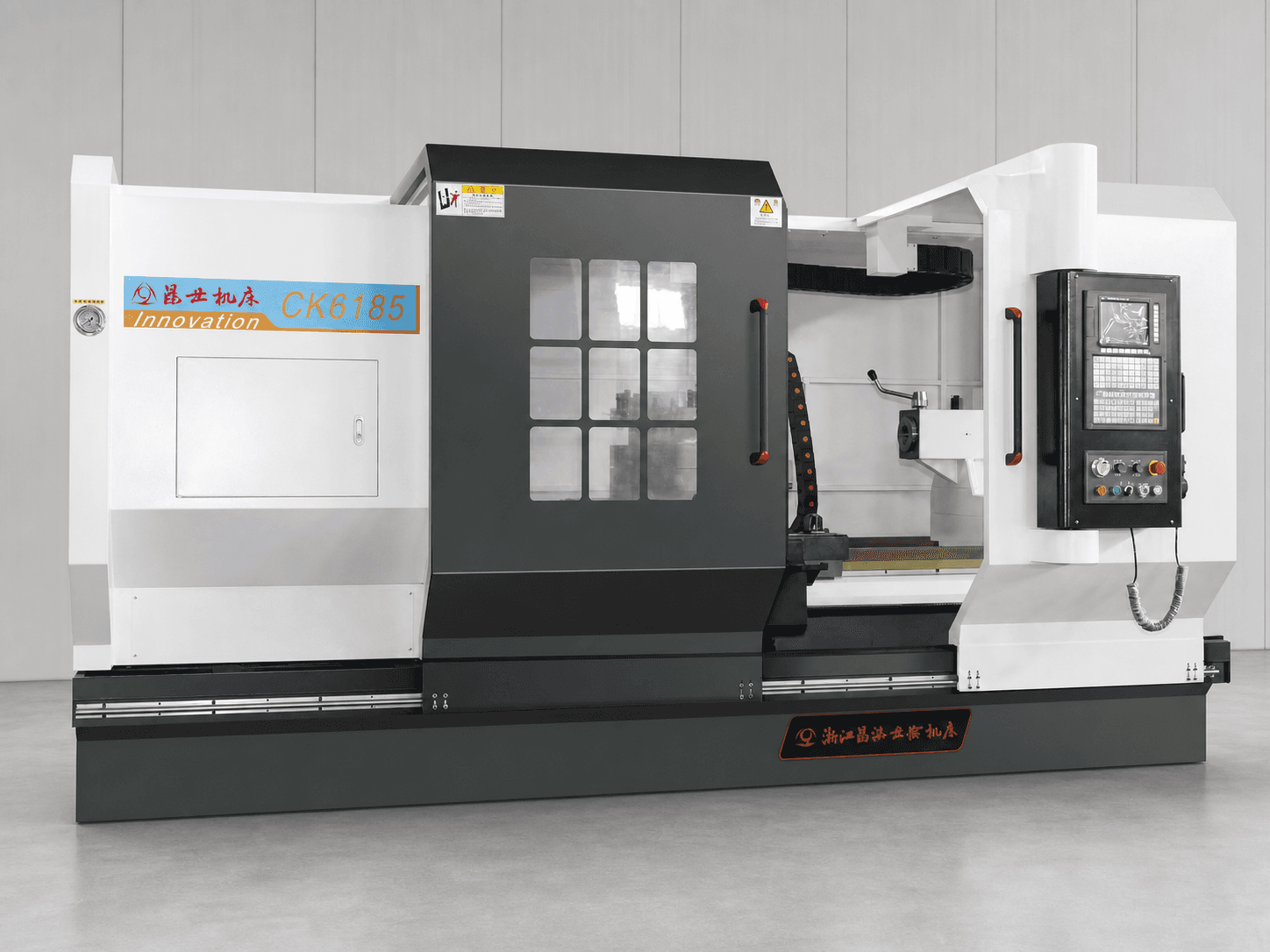

CK6185 Heavy-duty Horizontal CNC Lathe
Model: CK6185
CK6185 uses dual-triangular guideways for stable turning of larger-diameter shaft and disc parts under relatively heavy loads.
Product Overview
Full Description
The dual-triangular guideway structure emphasizes bed rigidity and operating stability for larger-diameter shaft and disc parts under relatively heavy turning loads.
Media
Product Gallery
Technical Data
Technical Specifications
| Capacity | |
|---|---|
| Max workpiece swing over bed | 860 mm |
| Max swing over cross slide | 530 mm |
| Max workpiece length | 1500 mm |
| Max load (shaft / disc) | 2200/1200 kg |
| Spindle | |
|---|---|
| Spindle nose | A2-11 |
| Spindle shaft / bore diameter | φ160/φ105 mm |
| Spindle speed range | 30–835 r/min，four-range stepless |
| Turret & Tooling | |
|---|---|
| Tool size | 32×32 mm |
| Feed Axes & Travel | |
|---|---|
| Guideway span / structure | 735 mm / dual-triangular guideways |
| X-axis travel | 430 mm |
| Tailstock quill diameter / travel | 130/250 mm |
| Accuracy | |
|---|---|
| X/Z repeatability | 0.010/0.015 mm |
| Machining accuracy | IT6–IT7 |
| Surface roughness | Ra1.6 |
| Motor | |
|---|---|
| Main motor power / type | 15 kW servo |
| Dimensions & Weight | |
|---|---|
| Tool size | 32×32 mm |
| Dimensions (L×W×H) | 3850×2230×2050 mm |
| Approx. net weight | 6500 kg |
| Other Specifications | |
|---|---|
| Tailstock taper | Morse No. 6 |
