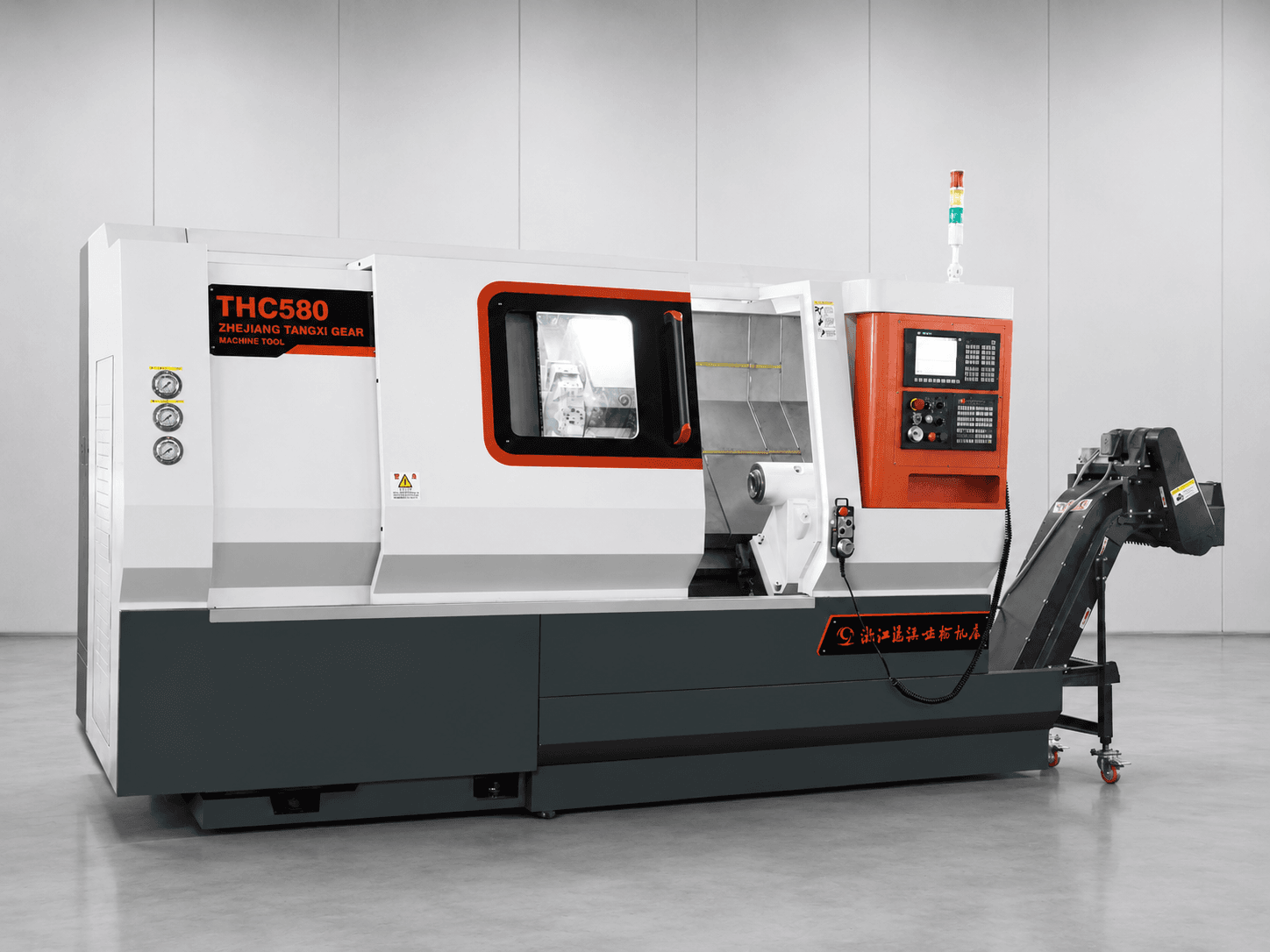

THC580 Slant-bed Horizontal CNC Lathe
Model: THC580
THC580 is a slant-bed horizontal CNC lathe with a one-piece cast-iron bed and enclosed guarding for continuous turning of shaft and disc parts.
Product Overview
Full Description
The machine uses a one-piece cast-iron bed, slant guideways and enclosed guarding, with a wide-speed-range spindle motor and multi-position turret for continuous CNC turning.
Media
Product Gallery
Technical Data
Technical Specifications
| Capacity | |
|---|---|
| Max cutting diameter | 500 mm |
| Max swing over bed | 580 mm |
| Max swing over cross slide | 360 mm |
| Distance between centers | 700 mm |
| Spindle | |
|---|---|
| Chuck size | 12-inch hydraulic through-hole chuck |
| Spindle speed | 20–2000 r/min |
| Spindle nose | A2-8 |
| Spindle shaft / bore diameter | φ130/φ100 mm |
| Spindle center to tool support | 25 mm |
| Tailstock spindle taper | Morse No. 5 |
| Turret & Tooling | |
|---|---|
| Toolpost type | Horizontal 12-station hydraulic/servo turret |
| Tool size | □25、φ32/40 mm |
| Spindle center to tool support | 25 mm |
| Feed Axes & Travel | |
|---|---|
| X-axis travel | 320 mm |
| Z-axis travel | 680 mm |
| X/Z rapid traverse | 15/20 m/min |
| Tailstock quill diameter / travel | 100/100 mm |
| Accuracy | |
|---|---|
| X/Z repeatability | 0.005/0.005 mm |
| Machining accuracy | IT6–IT7 |
| Surface roughness | Ra1.6 |
| Motor | |
|---|---|
| Main motor power / type | 15 kW servo |
| Dimensions & Weight | |
|---|---|
| Chuck size | 12-inch hydraulic through-hole chuck |
| Tool size | □25、φ32/40 mm |
| Approx. machine weight | 4200 kg |
| Dimensions (L×W×H) | 3130×1900×1900 mm |
| Other Specifications | |
|---|---|
| Max turning length | 580 mm |
| Bed inclination | 45° |
